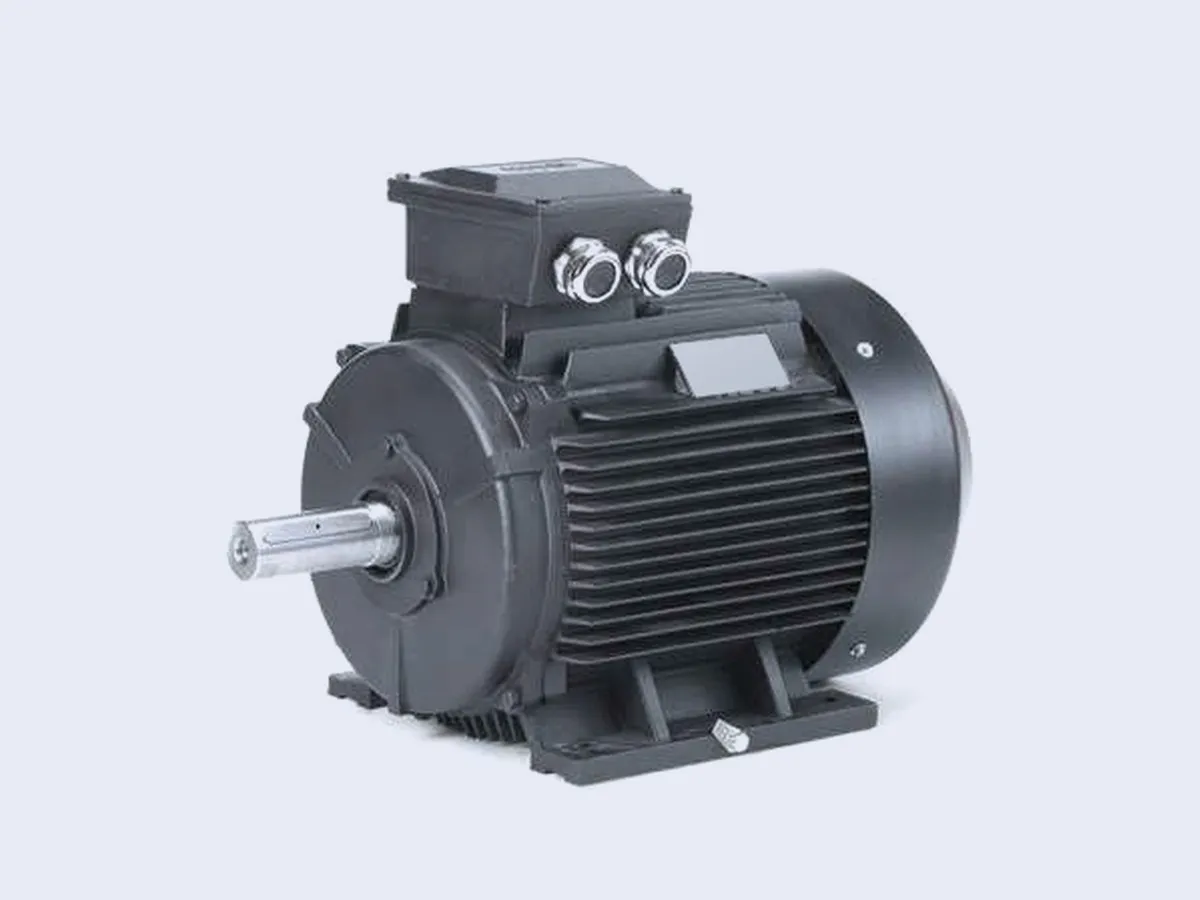

IE2 · High efficiency
IE2 Motors
The widest range — from small fan motors to large drives. For markets and power ranges where IE2 is permitted, and for replacing existing IE2 motors.
- Power
- 0.06 – 800 kW
- Frame sizes
- 56 – 450
- Poles
- 2 · 4 · 6
Electric Motors
Supported through our established motor supplier network.

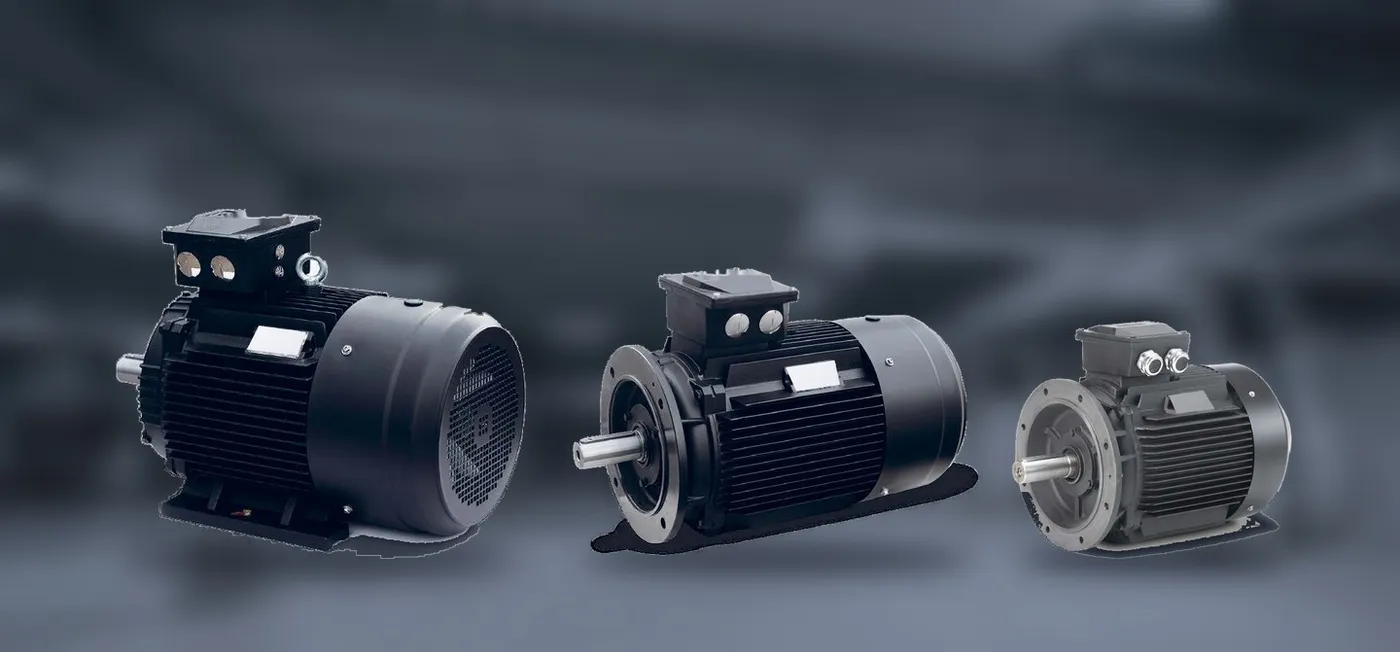

Motor Range
Totally enclosed, fan-cooled three-phase motors with 2, 4 or 6 poles — aluminium frames up to size 132, cast iron from size 160.
IE3 · Premium efficiency

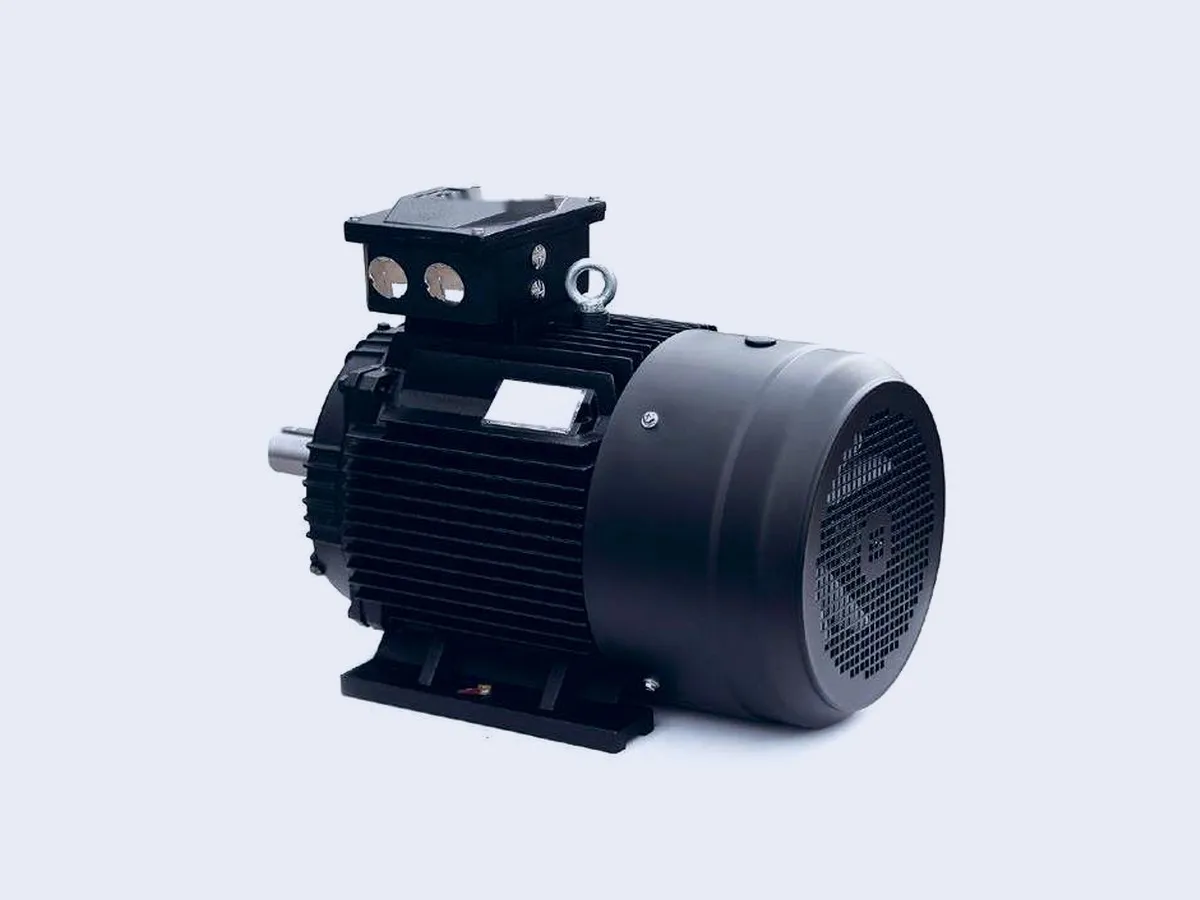

IE3 Motors
The standard choice for most new machines and replacements: low losses at a moderate price. Prepared for frequency converter (VFD) operation as standard.
- Power
- 0.75 – 315 kW
- Frame sizes
- 80 – 355
- Poles
- 2 · 4 · 6

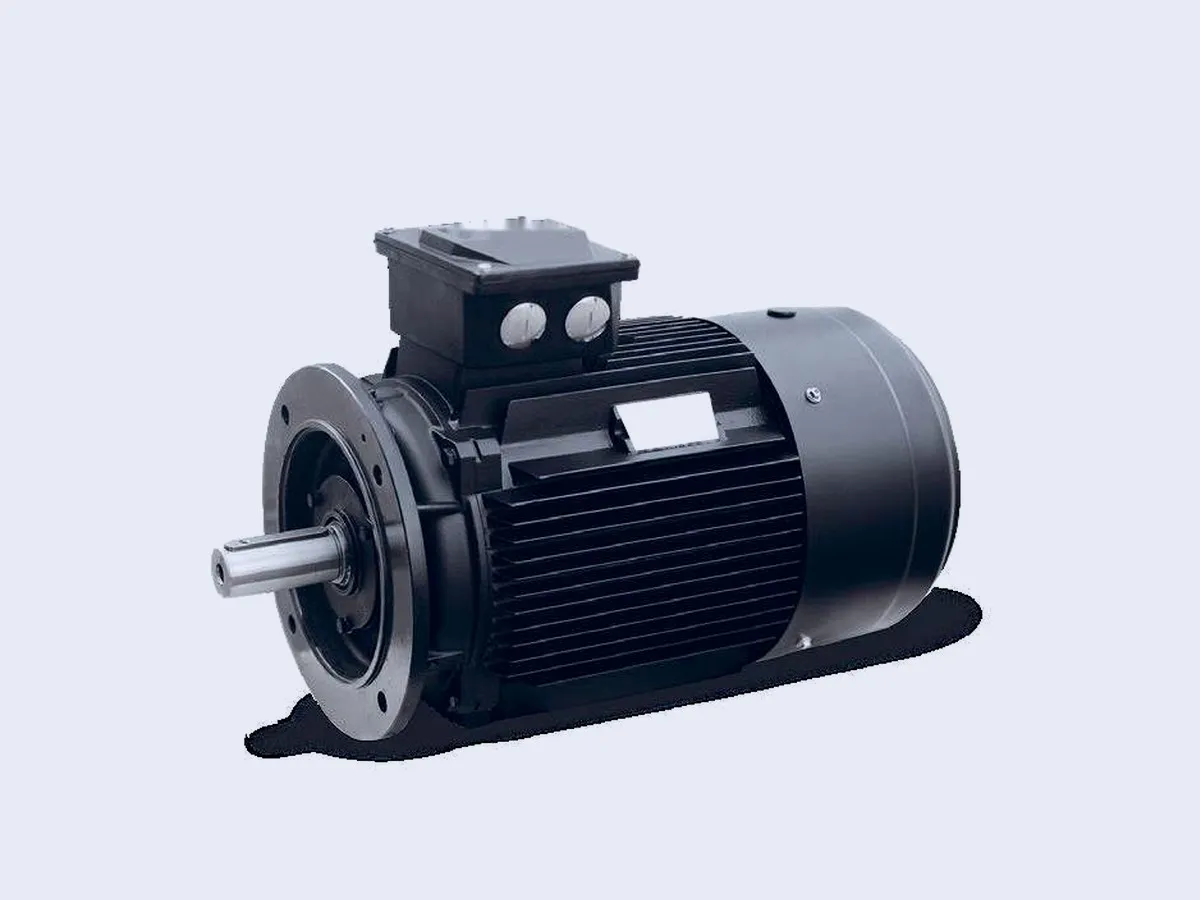

IE4 · Super premium efficiency
IE4 Motors
Lowest losses for drives with long running hours — fans, pumps and compressors in continuous duty. The efficiency gain matters most at high operating hours and load.
- Power
- 0.75 – 315 kW
- Frame sizes
- 80 – 355
- Poles
- 2 · 4 · 6

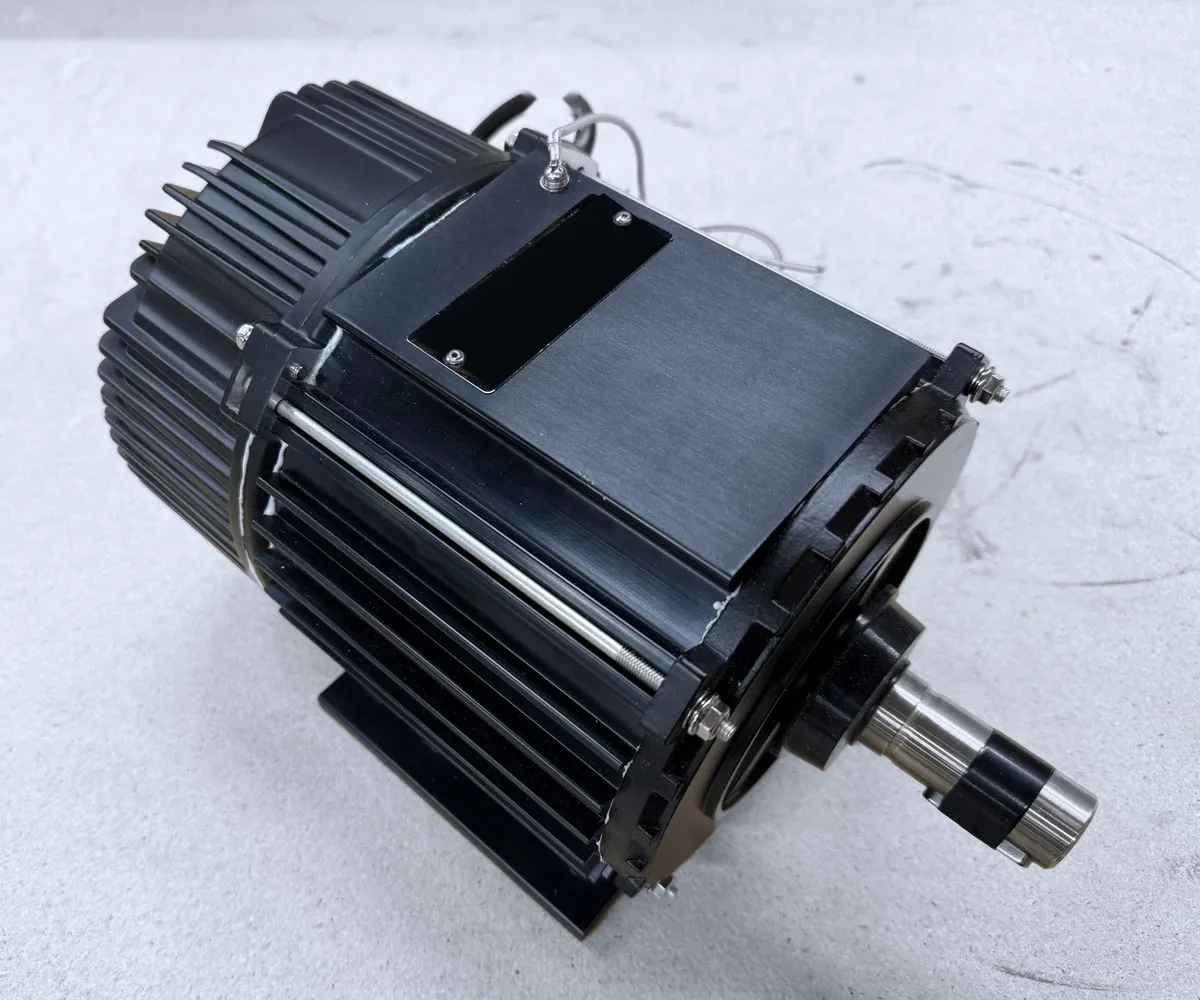

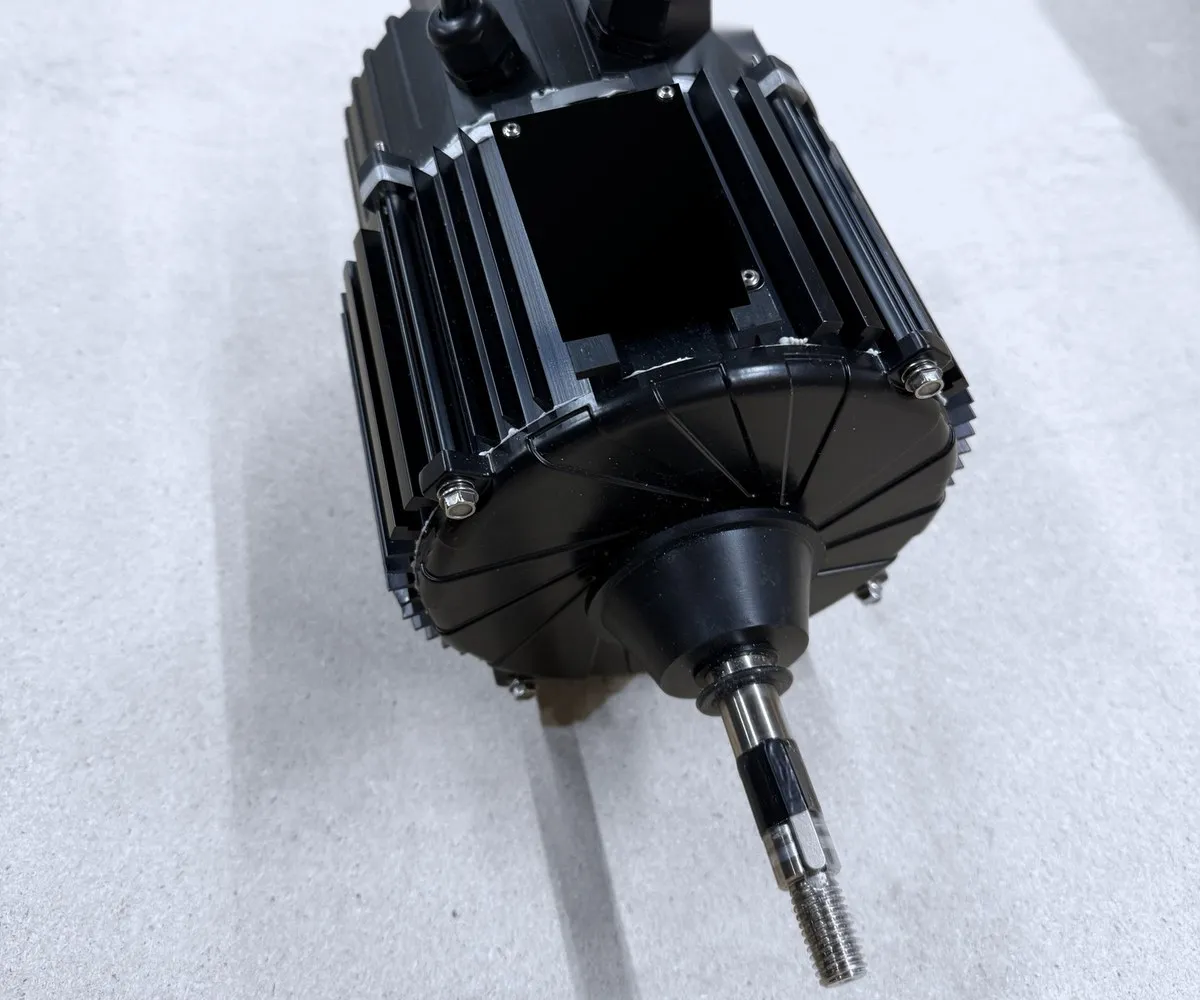

EC Motors for Fan Drives
Low-speed 10-pole EC motors with integrated electronics for direct-drive fans — no belt, no gearbox, no separate frequency converter. Factory-tested for efficiency, noise and vibration.
| 0.75 kW | 1.1 kW | |
|---|---|---|
| Supply voltage | 3~ 380 V | 3~ 380–480 V |
| Rated speed | 900 rpm | 690 rpm |
| Rated torque | 8.0 N·m | 15.2 N·m |
| Rated current | 1.8 A | 2.2 A |
| Efficiency | > 82 % | > 84 % |
| Housing diameter | Ø169 mm | Ø192 mm |
| Shaft diameter | Ø14 mm | Ø24 mm |
50/60 Hz · IP66 · S1 · insulation class F · noise ≤ 57 dB(A) · vibration ≤ 1.8 mm/s
Standard Design
- Built to IEC 60034, IEC 60072 and EN 50347
- Totally enclosed, fan-cooled (IC411), IP55
- Insulation class F, temperature rise class B
- PTC thermistors in the winding
- Mountings B3, B5, B14, B34 and B35
- 230/400 V up to 3 kW, 400/690 V above 3 kW; 50 and 60 Hz
- Vibration grade A, painted RAL 9005 black
Options on Request
- Vertical mountings and other terminal box positions
- Other voltages and frequencies, incl. 690 V / 60 Hz
- UL/CSA execution
- Anti-condensation heaters, PT100 in winding and bearings
- Insulated bearings for VFD duty
- Separate fan cooling and encoders
- IP56, IP65, IP66 · class H or tropical insulation
- Pulleys, couplings, motor slides and rails
Motors We Have Supplied
Beyond our standard range, we have sourced and delivered motors from these manufacturers — for industrial fans, fan coil units, Munters equipment and CNC machine tools.

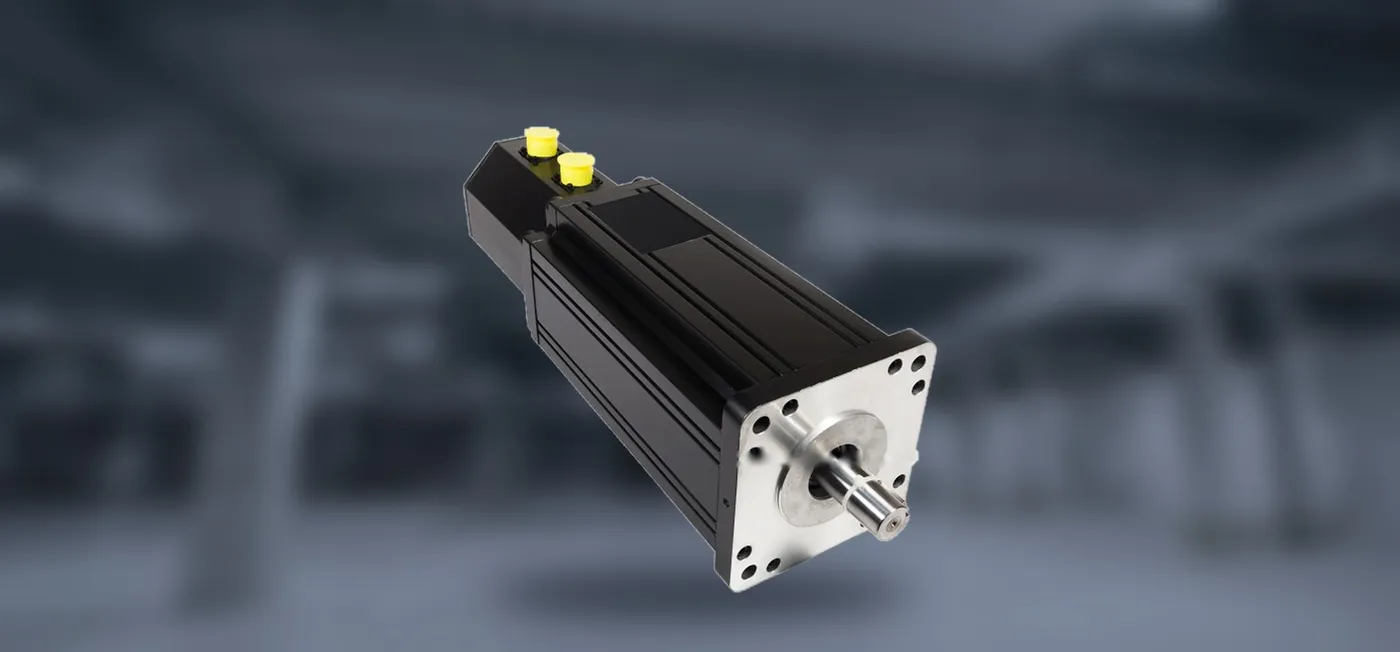

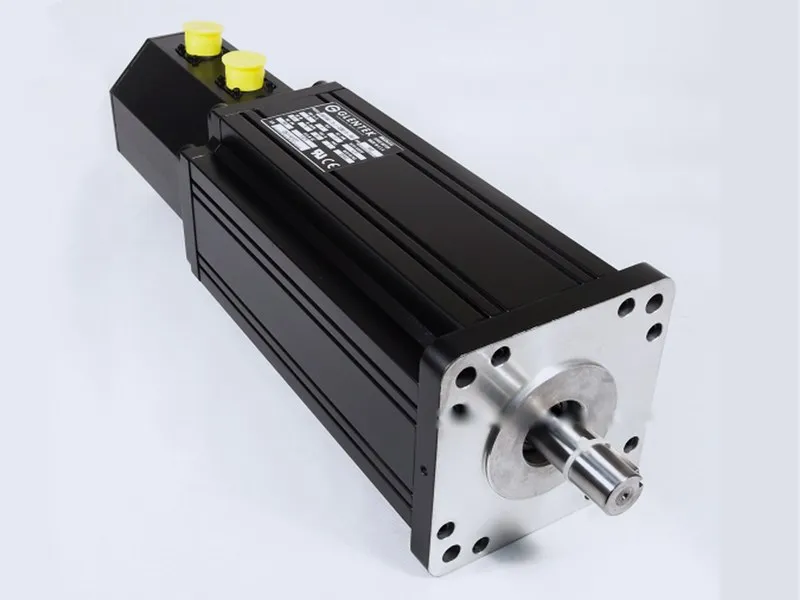

Glentek
Servo motor for a CNC milling machine

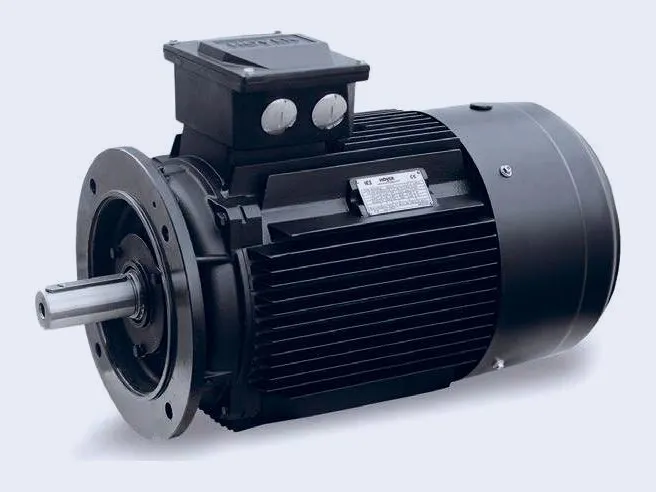

Hoyer
IEC three-phase motors, IE2–IE4

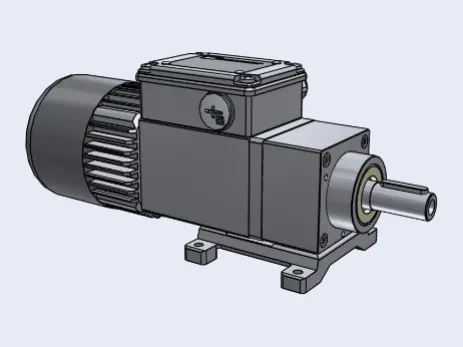

Mini Motor
Motors for Munters equipment

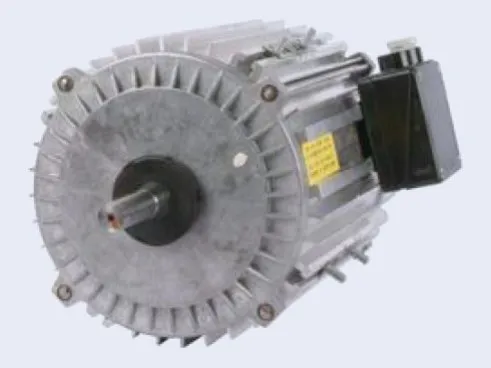

MVI
Ziehl-Abegg

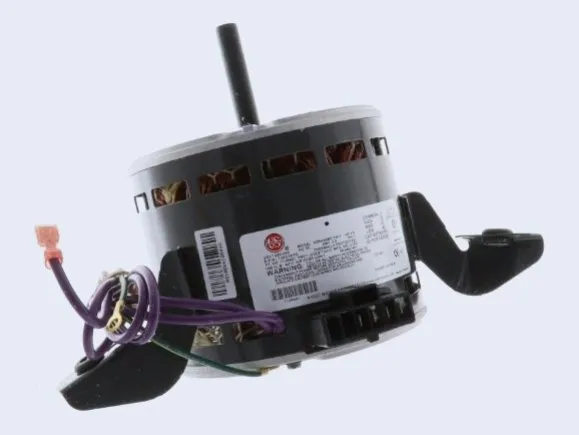

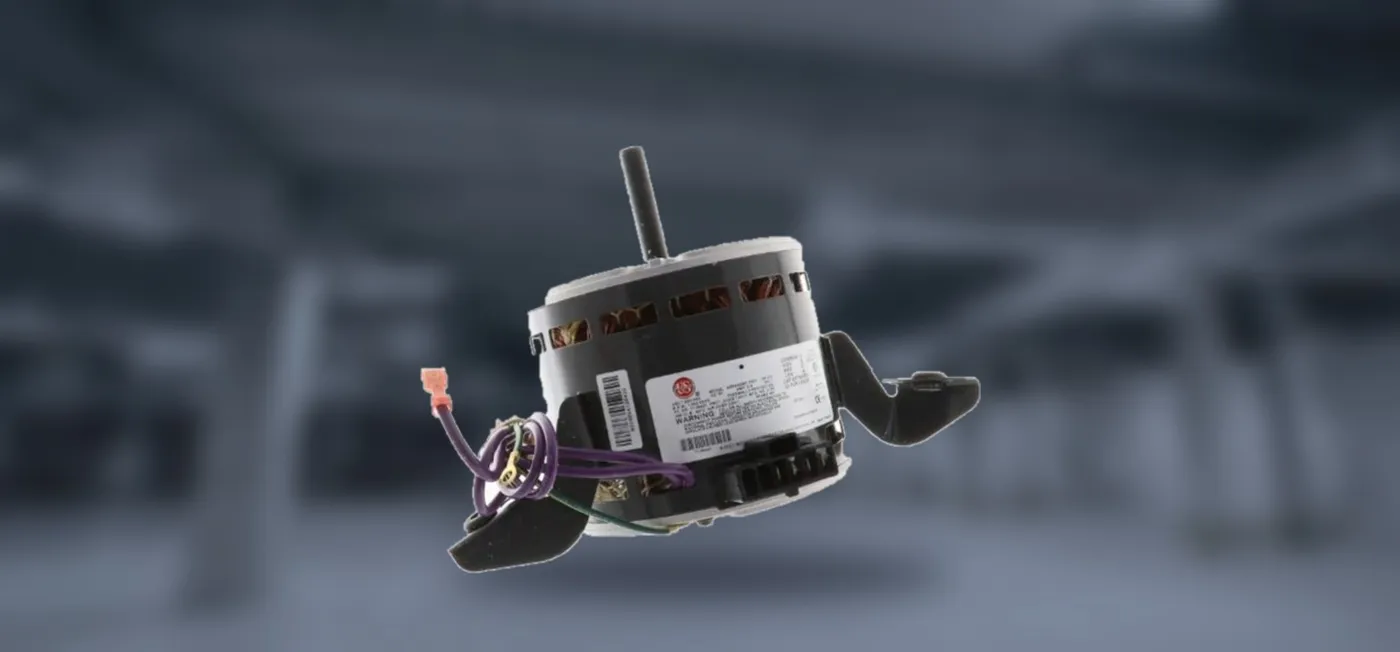

US Motors
Fan motors for fan coil units
Wolong
EC motors for fan drives

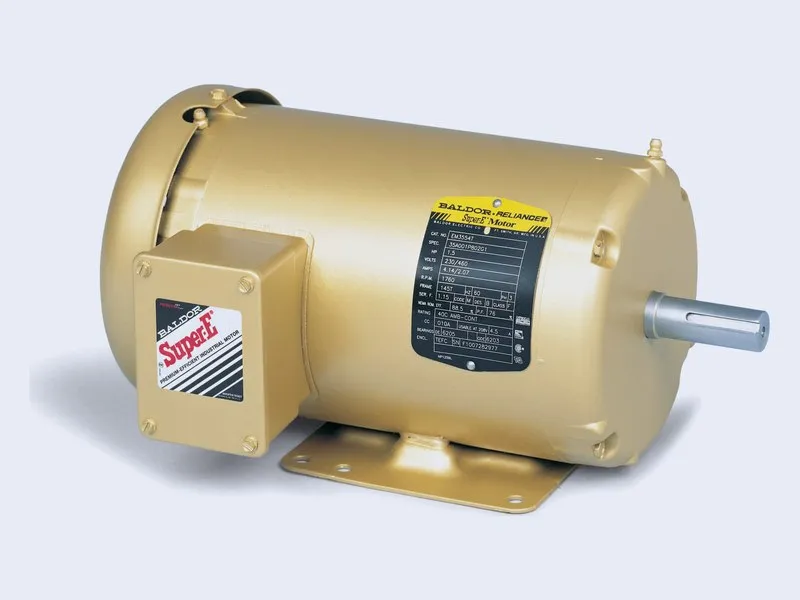

Baldor

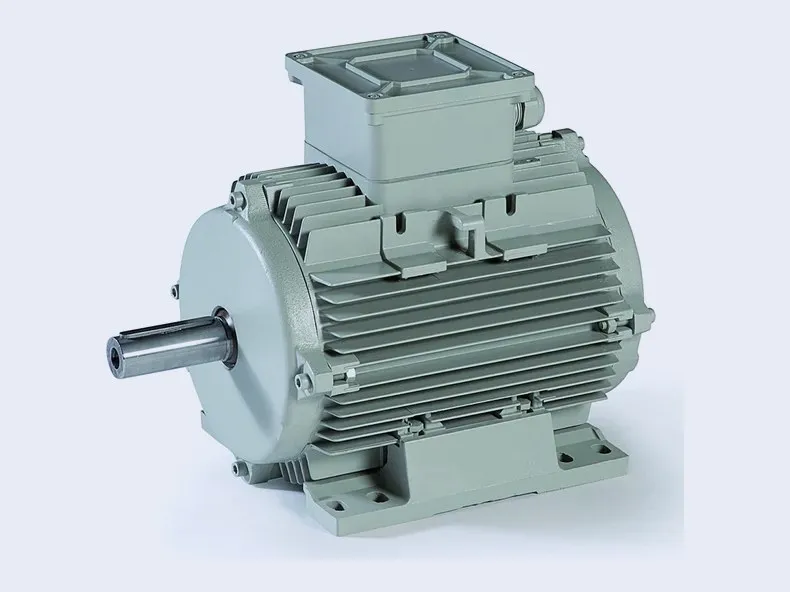

Electro Adda

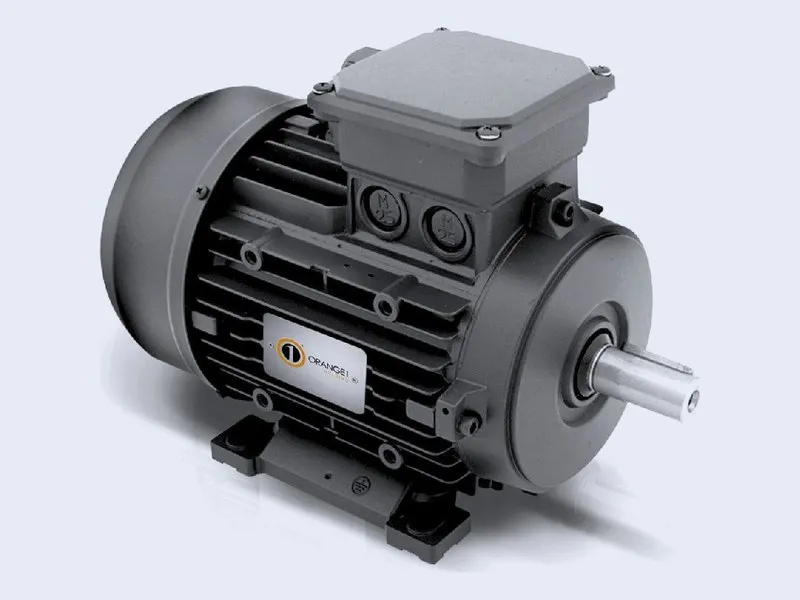

Orange1
Motor Replacement Request
We supply replacements for Baldor, Electro Adda, Gamak, Glentek, Hoyer, Mini Motor, MVI (Ziehl-Abegg), Orange1, US Motors and Wolong motors.
Copy what you can from the nameplate of the existing motor — only power and contact details are required. We reply with a matching motor, price and delivery time.
